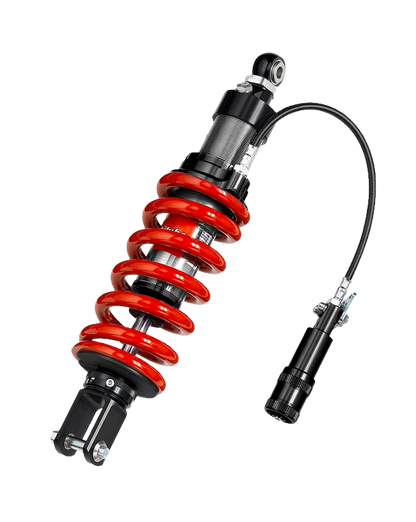

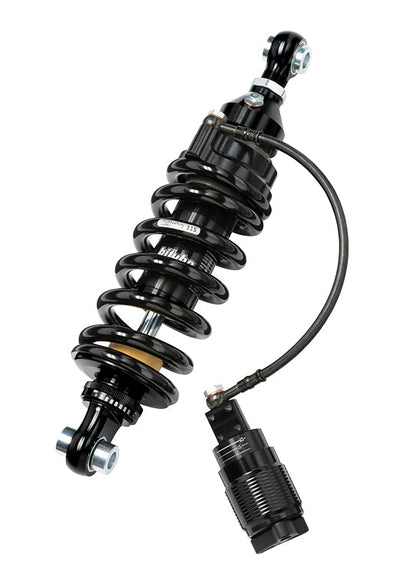

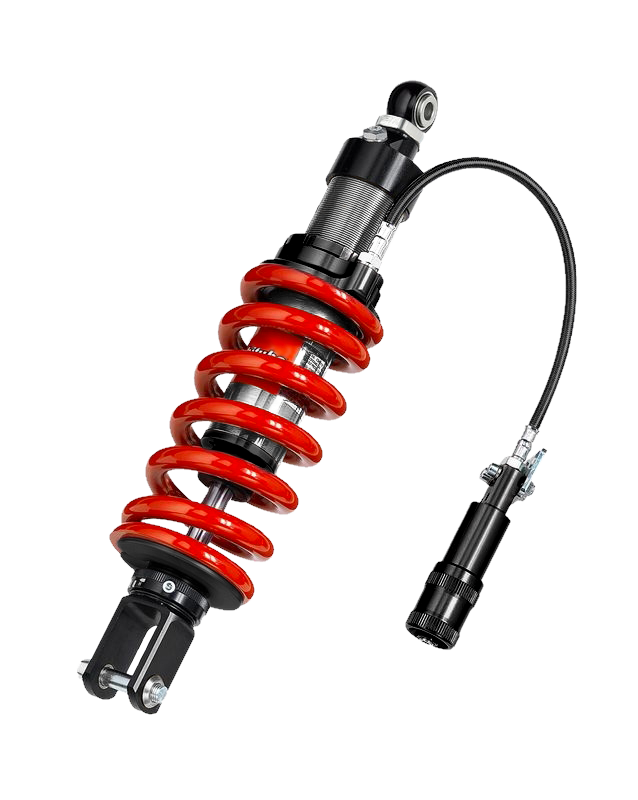

XZE Monoshock for M8 Softail

The XZE rear shock deliver race-proven comfort and performance in an affordable bolt-on package! Designed to give you the perfect balance of spring preload for proper traction and control. The internal floating piston separates the nitrogen gas from the shock oil maintaining damping control in any condition. Plug & Play in a day with installation instructions and hardware included! 12.55"and 13.11" height options with standard or heavy-duty spring rates, available in an all-Black finish. Like all Bitubo products, the XZE can be completely rebuilt, serviced and is covered by a Long-Life Warranty.

Features:

• Threaded Spring Preload adjustment
• Gas-charged mono-tube, with Internal Floating Piston
• Fully rebuildable and serviceable
• Cr-Si alloy steel springs
• 14mm steel rod with low friction surface treatment
• CNC machine billet Ergal heads

Adjustments:

• Rebound 7 clicks
• Hydraulic spring preload 12mm-24 clicks
• Length Adjustable up to 0.3"/8mm

Fitment:

• 2018-Current H-D M8 Softail Models

HD049XZE12V3 -(does not include the remote knob)

Length: 12.55"/319mm

Stroke: 40mm

Spring Rate: 14kg/mm

HD047XZE32V3

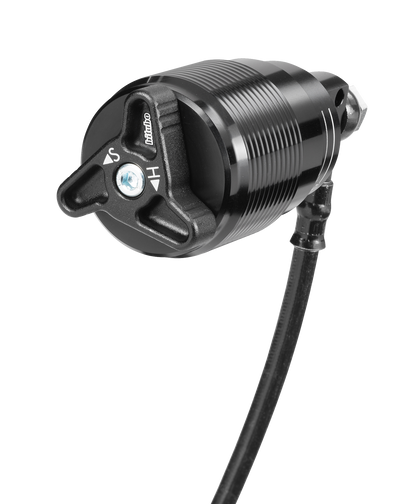

Length: 12.55"/319mm  - (hydraulic knob OE profile to fit in the side cover with a perfect fit)

Stroke: 40mm

Spring Rate: 14kg/mm

HD048XZE32V3 - (hydraulic knob OE profile to fit in the side cover with a perfect fit)

Length: 13.11"/333mm

Stroke: 55mm

Spring Rate: 11.5kg/mm

HD049XZE32V3 - (hydraulic knob skinny profile to fit under the seat or in a custom location)

Length: 12.55"/319mm

Stroke: 40mm

Spring Rate: 14kg/mm
